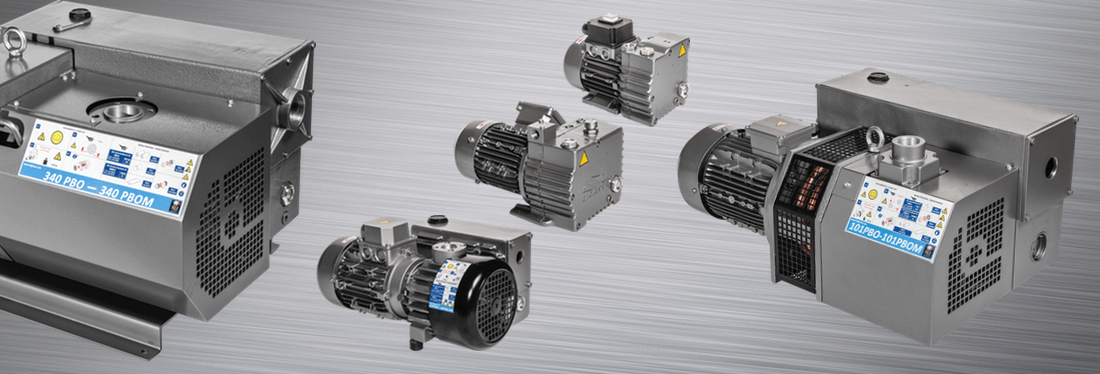

PBO/PBOM Serisi Yağlı Vakum Pompaları

Rotary vane vacuum pumps, oil lubrificated and air cooled. Supplied standard with an electric motor, oil separator, check valve and vibration damping feet.
The pump’s simple design facilitates ordinary control and maintenance operations.




3 PBO/PBOM

Cast iron compressor pump coupled directly to the electric motor. Aluminium oil/air separator eliminates oil mist discharge, suction check valve, air cooling. First oil filling included.
Accessories: Air filter, gas ballast valve, vacuum gauge, BGS TORR F32® non-toxic synthetic fluid
Special voltages: 12V dc / 24V dc
Certifications on request: ATEX


50Hz (60Hz)
Nominal
pumping speed
Ultimate pressure
Nominal motor
rating
Nominal motor
speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
rpm
dB(A)
Litri
Kg
3 PBO
3 (3,6)
10
0,11 (0,11)
0,11
2750 (3300)
57
0,1
7
3 PBOM
3 (3,6)
2
0,11 (0,11)
0,11
2750 (3300)
57
0,1
7


6 PBO/PBOM

Cast iron compressor pump coupled directly to the electric motor. Aluminium oil/air separator eliminates oil mist discharge, suction check valve, air cooling. First oil filling included.
Accessories: Air filter, gas ballast valve, vacuum gauge, BGS TORR F32® non-toxic synthetic fluid
Special voltages: 12V dc / 24V dc
Certifications on request: ATEX


50Hz (60Hz)
Nominal
pumping speed
Ultimate pressure
Nominal motor
rating
Nominal motor
speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
rpm
dB(A)
Litri
Kg
6 PBO
6 (7,4)
10
0,18 (0,18)
0,37
2750 (3300)
65
0,2
13
6 PBOM
6 (7,4)
0,5
0,18 (0,18)
0,37
2750 (3300)
65
0,2
13


12 PBO/PBOM

Cast iron compressor pump coupled directly to the electric motor. Aluminium oil/air separator eliminates oil mist discharge, suction check valve, air cooling. First oil filling included.
Accessories: Air filter, gas ballast valve, vacuum gauge, BGS TORR F32® non-toxic synthetic fluid
Special voltages: 12V dc / 24V dc
Certifications on request: ATEX


50Hz (60Hz)
Nominal
pumping speed
Ultimate pressure
Nominal motor
rating
Nominal motor
speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
rpm
dB(A)
Litri
Kg
12 PBO
12 (14,4)
10
0,37 (0,37)
0,37
2750 (3300)
67
0,25
14
12 PBOM
12 (14,4)
0,5
0,37 (0,37)
0,37
2750 (3300)
67
0,25
14


28 PBO/PBOM

Cast iron compressor pump coupled directly to the electric motor. Aluminium oil/air separator eliminates oil mist discharge, suction check valve, air cooling. First oil filling included.
Accessories: Air filter, gas ballast valve, vacuum gauge, BGS TORR F32® non-toxic synthetic fluid
Special voltages: 12V dc / 24V dc
Certifications on request: ATEX


50Hz (60Hz)
Nominal
pumping speed
Ultimate pressure
Nominal motor
rating
Nominal motor
speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
rpm
dB(A)
Litri
Kg
28 PBO
28 (33)
10
0,75 (0,75)
0,75
1450 (1750)
61
0,5
25
28 PBOM
28 (33)
0,5
0,75 (0,75)
0,75
1450 (1750)
61
0,5
25


41 PBO/PBOM

Cast iron pumping unit coupled to the electric motor via a flexible coupling. Aluminium oil/air separator eliminates oil mist discharge, suction check valve, air cooling.
Accessories: Air filter, gas ballast valve, vacuum gauge, BGS TORR F100® non-toxic synthetic fluid
Special voltages: available.
Certifications on request: ATEX


50Hz (60Hz)
Nominal
pumping speed
Ultimate pressure
Nominal motor
rating
Nominal motor
speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
rpm
dB(A)
Litri
Kg
41 PBO
40 (48)
10
1,1 (1,1)
1,5
1450 (1740)
67
3
42
41 PBOM
40 (48)
0,5
1,1 (1,1)
1,5
1450 (1740)
67
3
42


61 PBO/PBOM

Cast iron pumping unit coupled to the electric motor via a flexible coupling. Aluminium oil/air separator eliminates oil mist discharge, suction check valve, air cooling.
Accessories: Air filter, gas ballast valve, vacuum gauge, BGS TORR F100® non-toxic synthetic fluid
Special voltages: available.
Certifications on request: ATEX

50Hz (60Hz)
Nominal
pumping speed
Ultimate pressure
Nominal motor
rating
Nominal motor
speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
rpm
dB(A)
Litri
Kg
61 PBO
60 (72)
10
1,5 (1,5)
2,2
1450 (1740)
67
3
49,5
61 PBOM
60 (72)
0,5
1,5 (1,5)
2,2
1450 (1740)
67
3
49,5


101 PBO/PBOM

Cast iron pumping unit coupled to the electric motor via a flexible coupling. Aluminium oil/air separator eliminates oil mist discharge, suction check valve, air cooling.
Accessories: Air filter, gas ballast valve, vacuum gauge, BGS TORR F100® non-toxic synthetic fluid
Special voltages: available.
Certifications on request: ATEX

50Hz (60Hz)
Nominal
pumping speed
Ultimate pressure
Nominal motor
rating
Nominal motor
speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
rpm
dB(A)
Litri
Kg
101 PBO
100 (120)
10
2,2 (3,0)
1450 (1740)
73
5,8
82
101 PBOM
100 (120)
0,5
2,2 (3,0)
1450 (1740)
73
5,8
82


220 PBO/PBOM

Cast iron pumping unit coupled to the electric motor via a flexible coupling. Aluminium oil/air separator eliminates oil mist discharge, suction check valve, air cooling.
Accessories: Air filter, gas ballast valve, vacuum gauge, BGS TORR F100® non-toxic synthetic fluid
Special voltages: available.
Certifications on request: ATEX

50Hz (60Hz)
Nominal
pumping speed
Ultimate pressure
Nominal motor
rating
Nominal motor
speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
rpm
dB(A)
Litri
Kg
220 PBO
220 (260)
10
4 (5,5)
1450 (1740)
76
8
140
220 PBOM
220 (260)
0,5
4 (5,5)
1450 (1740)
76
8
140


340 PBO/PBOM

Cast iron pumping unit coupled to the electric motor via a flexible coupling.
Aluminium oil/air separator eliminates oil mist discharge, suction check valve, air cooling.
Accessories: Air filter, gas ballast valve, vacuum gauge, BGS TORR F100® non-toxic synthetic fluid
Special voltages: available.
Certifications on request: ATEX

50Hz (60Hz)
Nominal
pumping speed
Ultimate pressure
Nominal motor
rating
Nominal motor
speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
rpm
dB(A)
Litri
Kg
340 PBO
340 (405)
10
7,5 (9,2)
1450 (1740)
76
8
175
340 PBOM
340 (405)
0,5
7,5 (9,2)
1450 (1740)
76
8
175


500 PBO/PBOM

Cast iron pumping unit coupled to the electric motor via a flexible coupling. Aluminium oil/air separator eliminates oil mist discharge, suction check valve, air cooling.
Accessories: Air filter, gas ballast valve, vacuum gauge, BGS TORR F100® non-toxic synthetic fluid
Special voltages: available.
Certifications on request: ATEX

50Hz (60Hz)
Nominal
pumping speed
Ultimate pressure
Nominal motor
rating
Nominal motor
speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
rpm
dB(A)
Litri
Kg
500 PBO
530 (635)
10
11 (15)
1450 (1750)
81
16
415
500 PBOM
530 (635)
0,5
11 (15)
1450 (1750)
81
16
415


700 PBO/PBOM

Cast iron pumping unit coupled to the electric motor via a flexible coupling. Aluminium oil/air separator eliminates oil mist discharge, suction check valve, air cooling.
Accessories: Air filter, gas ballast valve, vacuum gauge, BGS TORR F100® non-toxic synthetic fluid
Special voltages: available.
Certifications on request: ATEX

50Hz (60Hz)
Nominal
pumping speed
Ultimate pressure
Nominal motor
rating
Nominal motor
speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
rpm
dB(A)
Litri
Kg
700 PBO
700 (840)
10
15 (18,5)
1450 (1740)
80
16
415
700 PBOM
700 (840)
0,5
15 (18,5)
1450 (1740)
80
16
415



FEATURES
PBO/PBOM Serisi Yağlı Vakum Pompaları
