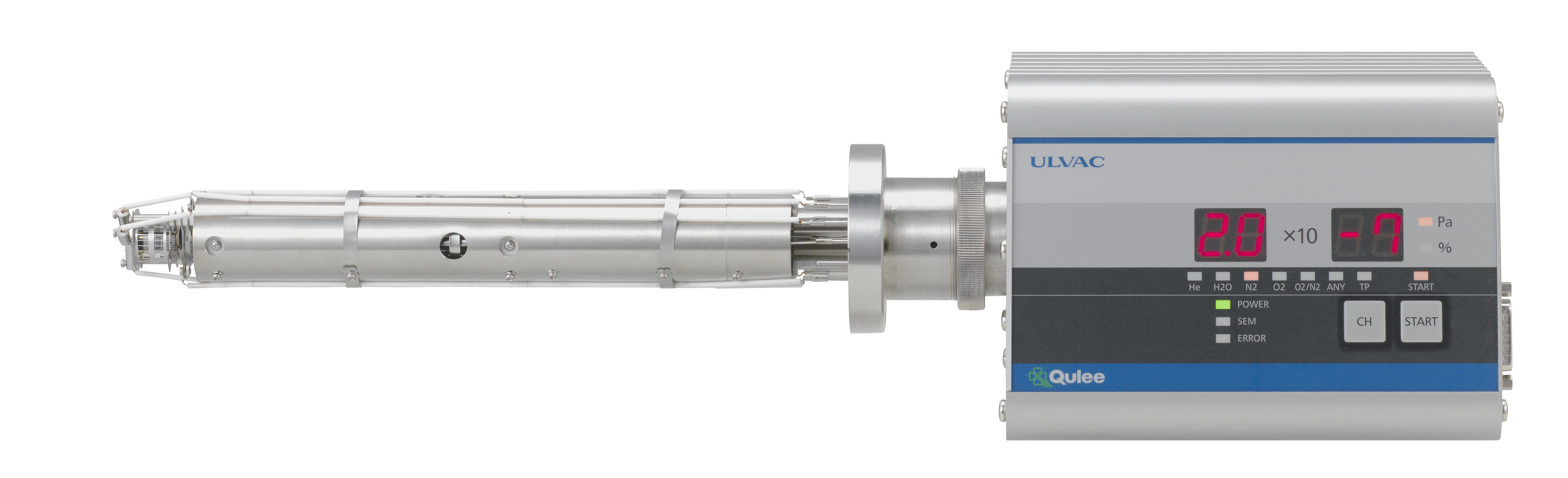

HIGH PERFORMANCE PROCESS GAS MONITOR - QULEE HGM SERIES
HIGH PERFORMANCE PROCESS GAS MONITOR - QULEE HGM SERIES
ULVAC’s new “Qulee HGM” residual gas analyzer series with revolutionary simplicity of use. Offers highest sensitivity of all models at 2.5×10-6 A/Pa, Qulee HGM can meet the needs of various R&D and other vacuum system process monitoring.
Most Appropriate for R&D Applications Offers highest sensitivity 2.5×10-6A/Pa (3.3×10-4A/Torr, 2.5×10-4A/ mbar)
Integrated Display No need for PC
Simple Operation "One Click" function
Bake Out Max 250˚C (482˚F) high temperature bake (300˚C (572˚F) when the sensors are removed)
Degas Function Electron bombard degas
Maintenance Filament, ion source, and secondary electron multiplier are easy to replace.
Protection and Maintenance Features Unit offers protection and maintenance of ion source and secondary electron multiplier Traceability of analysis tube (patent pending)
Various Leak Tests are available Helium leak test, air leak test, leak up
Total Pressure Measurement Capable of total pressure measurement (ionization gauge)
Qulee QCS is Included This software is included and compatible with (Windows XP/7)
Applicable Standard Conforms with CE
SPECIAL FEATURES / FURTHER APPLICATIONS
R&D such as thermal desorption gas analysis
Residual gas analysis for ultra-high vacuum pumping equipment, etc
