BGS GENERAL can design, develop and build prototypes to satisfy your every need. We design “customized turnkey systems.”

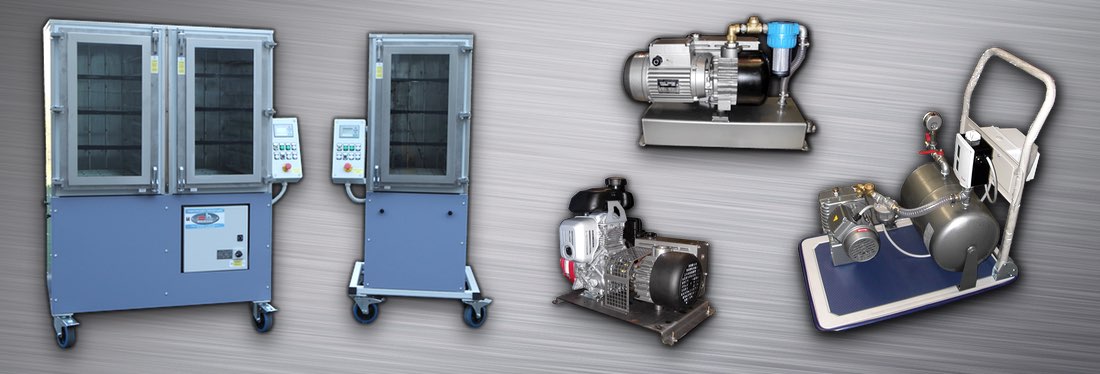

High Vacuum Test Chamber

Vacuum Chamber single or double for seal tests / altitude simulation.
The system is provided with a programmable PLC to vary all the parameters required for the test/simulation.
Max. Final depressure : 0.5 mbar(a)




Vacuum pumps with a 12V dc / 24V dc motor

PBO – PBOM series vacuum pumps can be supplied with 12/24V dc electric motors.
Nominal pumping speed: from 3 to 60 m3/h
Ultimate pressure: 10 mbar serie PBO – 0,5 mbar serie PBOM




Vacuum pumps with a water sight glass.

Special version with an external sight glass to check and eliminate water condensation with the pump idle.
The pump is designed to run with high concentrations of water vapour. Suitable for continuous suction within
a pressure gap of 400 to 10 mbar (ass.).
Nominal pumping speed: from 6  to 28 m3/h
Ultimate pressure: 10 mbar serie PBO




Vacuum pumps with a petrol engine.

PBO-PBOM series pumps can be supplied with a petrol engine.
Typically used in worksites where electrical power is unavailable.
Nominal pumping speed: from 28  to 40 m3/h
Ultimate pressure: 10 mbar serie PBO-0,5 mbar serie PBOM




Vacuum pumps with an anti-condensation tank.

Vacuum system consisting of an oil lubricated or dry pump, with an anti-condensation tank, safety suction filter, non-return valve, vacuum gauge and manual exclusion valve.
Condensation in the tank is automatically discharged when the pump is idle.
The system can also be supplied with a mechanical vacuum switch and electrical control panel.
Nominal pumping speed:from 6 to 28 m3/h
Ultimate pressure: 10 mbar serie PBO – 0,5 mbar serie PBOM-150 mbar serie S




Vacuum pumps on a trolley.

PBO-PBOM-S series vacuum pumps can be supplied on a movable trolley, with accessories depending the required application.
Nominal pumping speed: from 3  to 340 m3/h
Ultimate pressure: 10 mbar serie PBO-0,5 mbar serie PBOM-150 mbar serie S
