Laboratuvar Tipi Pompalar

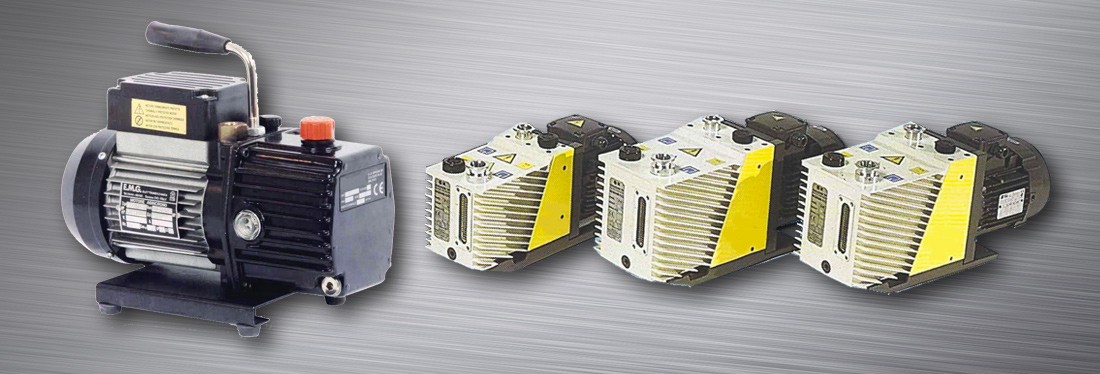

Bagno-olio

Single or double stage oil-bath vacuum pumps. Built in light alloys and a mono-block design, allowing for a high final pressure.




3 PB2

Rotary vane vacuum pump, dual stage, with forced lubrication. Complete with a gas ballast valve for eliminating condensable gases and suction check valve.
Accessories: air filter, external oil separator filter, vacuum gauge.

50Hz
Nominal pumping speed
Ultimate pressure
Nominal motor rating
Nominal motor speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
giri/min.
dB(A)
Lit.
Kg
3PB2
3
0,01
0,12
2750
56
0,4
6,5


4 PB1
Rotary vane vacuum pump, single stage, with forced lubrication. Complete with a gas ballast valve for eliminating condensable gases and suction check valve.
Accessories: air filter, external oil separator filter, vacuum gauge.

50Hz
Nominal pumping speed
Ultimate pressure
Nominal motor rating
Nominal motor speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
giri/min.
dB(A)
Lit.
Kg
4PB1
5,4
0,1
0,18
2750
57
0,5
6,5


4 PB2

Rotary vane vacuum pump, dual stage, with forced lubrication. Complete with a gas ballast valve for eliminating condensable gases and suction check valve.
Accessories: air filter, external oil separator filter, vacuum gauge.

50Hz
Nominal pumping speed
Ultimate pressure
Nominal motor rating
Nominal motor speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
giri/min.
dB(A)
Lit.
Kg
4PB2
5,4
0,01
0,18
2750
57
0,5
7,2


9 PB1
Rotary vane vacuum pump, single stage, with forced lubrication. Complete with a gas ballast valve for eliminating condensable gases and suction check valve.
Accessories: air filter, external oil separator filter, vacuum gauge.

50Hz
Nominal pumping speed
Ultimate pressure
Nominal motor rating
Nominal motor speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
giri/min.
dB(A)
Lit.
Kg
9PB1
9,2
0,1
0,25
2750
57
0,5
10,5


9 PB2

Rotary vane vacuum pump, dual stage, with forced lubrication. Complete with a gas ballast valve for eliminating condensable gases and suction check valve.
Accessories: air filter, external oil separator filter, vacuum gauge.

50Hz
Nominal pumping speed
Ultimate pressure
Nominal motor rating
Nominal motor speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
giri/min.
dB(A)
Lit.
Kg
9PB2
9,2
0,01
0,37
2750
57
0,45
11


15 PB2

Rotary vane vacuum pump, dual stage, with forced lubrication. Complete with a gas ballast valve for eliminating condensable gases and suction check valve.
Accessories: air filter, external oil separator filter, vacuum gauge.

50Hz
Nominal pumping speed
Ultimate pressure
Nominal motor rating
Nominal motor speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
giri/min.
dB(A)
Lit.
Kg
15PB2
15
0,01
0,60
1450
57
0,35
13,5


25 PB2

Rotary vane vacuum pump, dual stage, with forced lubrication. Complete with a gas ballast valve for eliminating condensable gases and suction check valve.
Accessories: air filter, external oil separator filter, vacuum gauge.

50Hz
Nominal pumping speed
Ultimate pressure
Nominal motor rating
Nominal motor speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
giri/min.
dB(A)
Lit.
Kg
25PB2
25
0,001
0,75
0,75
1450
62
1,0
25

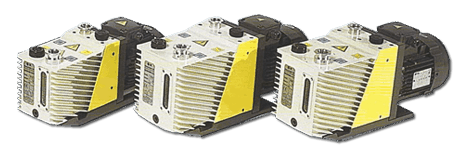

12 PB2D

Rotary vane vacuum pump, dual stage, with forced lubrication. Complete with a gas ballast valve for eliminating condensable gases and suction check valve.
Accessories: air filter, external oil separator filter, vacuum gauge.

50Hz
Nominal pumping speed
Ultimate pressure
Nominal motor rating
Nominal motor speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
giri/min.
dB(A)
Lit.
Kg
12PB2D
11,6 (13,9)
2×10-3
0,37 (0,45)
0,45 (0,55)
1450 (1740)
59
0,6
19,5

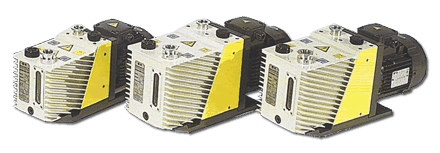

18 PB2D

Rotary vane vacuum pump, dual stage, with forced lubrication. Complete with a gas ballast valve for eliminating condensable gases and suction check valve.
Accessories: air filter, external oil separator filter, vacuum gauge.

50Hz
Nominal pumping speed
Ultimate pressure
Nominal motor rating
Nominal motor speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
giri/min.
dB(A)
Lit.
Kg
18PB2D
17,4 (20,8)
2×10-3
0,75 (0,90)
0,75 (0,90)
1450 (1740)
59
1,0
30


28 PB2D

Rotary vane vacuum pump, dual stage, with forced lubrication. Complete with a gas ballast valve for eliminating condensable gases and suction check valve.
Accessories: air filter, external oil separator filter, vacuum gauge.

50Hz
Nominal pumping speed
Ultimate pressure
Nominal motor rating
Nominal motor speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
giri/min.
dB(A)
Lit.
Kg
28PB2D
30,2 (36,2)
2×10-3
0,75 (0,90)
0,75 (0,90)
1450 (1740)
59
1,0
30


80 PB2D

Rotary vane vacuum pump, dual stage, with forced lubrication. Complete with a gas ballast valve for eliminating condensable gases and suction check valve.
Accessories: air filter, external oil separator filter, vacuum gauge.

50Hz
Nominal pumping speed
Ultimate pressure
Nominal motor rating
Nominal motor speed
Noise level
Oil capacity
Weight

m3/h
mbar (a)
Kw – 3 ~
Kw – 1 ~
giri/min.
dB(A)
Lit.
Kg
80PB2D
73 (87,6)
2×10-3
2,2 (2,6)
1450 (1740)
62
4,5
102



FEATURES
