Anestezik Gaz Tahliye ( AGS ) Sistemi

Anaesthetic gas scavenging system (SDEGA) – Compliant with European regulations UNI EN 7396-2:2007 and HTM 02-01

CGA 30 MEDEVICE system

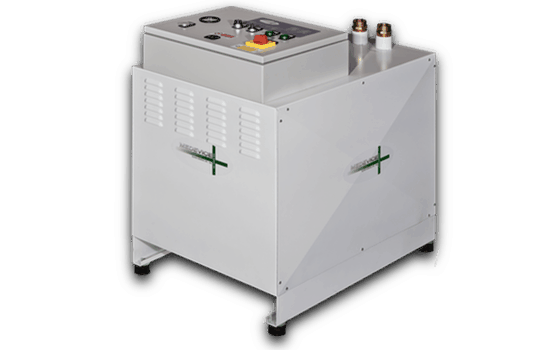

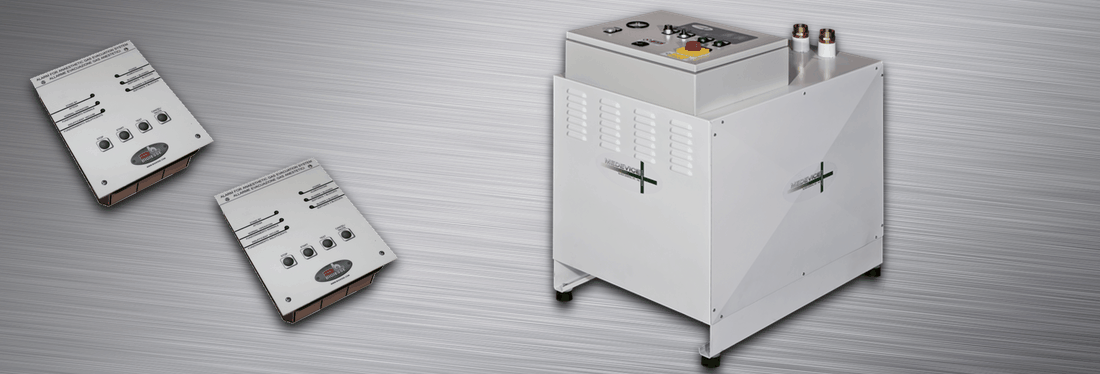

Anaesthetic gas scavenging system consisting of 2 side channel blowers, protection cover casing, electrical and control panel, remote start / stop /alarms panel, safety suction filter and depression control valve.
The blowers are equipped with: vibration absorbing feet, non-return valve.

	Nominal pumping speed	Ultimate pressure	Nominal motor rating		Suction connection	Exhtaust connection	Noise level	Weight
	m3/h	mbar (e)	Kw – 1 ~	Kw – 3 ~			dB(A)	Kg
CGA 30	2×40	30/40	2×0,2	2×0,2	D.42	D.42	72	85

CGA 70 MEDEVICE system

	Nominal pumping speed	Ultimate pressure	Nominal motor rating		Suction connection	Exhtaust connection	Noise level	Weight
	m3/h	mbar (e)	Kw – 1 ~	Kw – 3 ~			dB(A)	Kg
CGA 70	2×100	80/100	2×0,4	2×0,37	D.42	D.42	72	95

CGA 100 MEDEVICE system

	Nominal pumping speed	Ultimate pressure	Nominal motor rating		Suction connection	Exhtaust connection	Noise level	Weight
	m3/h	mbar (e)	Kw – 1 ~	Kw – 3 ~			dB(A)	Kg
CGA 100	2×145	80/140	2×0,8	2×0,7	D.42	D.42	73	100

CGA 130 MEDEVICE system

	Nominal pumping speed	Ultimate pressure	Nominal motor rating		Suction connection	Exhtaust connection	Noise level	Weight
	m3/h	mbar (e)	Kw – 1 ~	Kw – 3 ~			dB(A)	Kg
CGA 130	2×210	80/140	2×1,5	2×1,5	D.42	D.42	74	110
